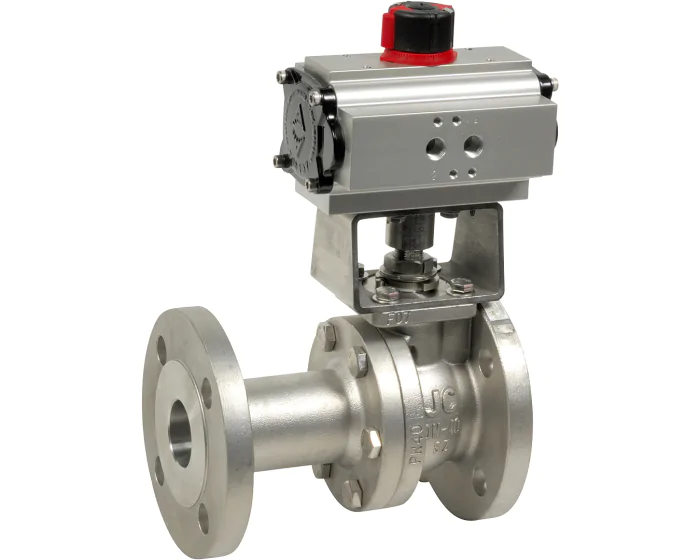

The 340IIT series JC VALVES stainless steel ball valve has a CF8M body and ball, and PTFE seats. It is actuated with pneumatic actuation ACTREG ADA/ASR, up to DN150.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| Operating angle (°) | 90 |
| Shaft/stem matérial | Stainless steel 316 |
| Adjustable limit screws | Yes |
| ATEX compatible | Yes |
| DN | DN65 - 2''1/2 |
| Face to Face (mm) | 290.0 |
| Body material | Stainless steel CF8M (1.4408) |
| ATEX protection mode | Ex c |
| Number of ways | 2 |
| Bore | Full |
| Packing gland | Graphite |
| PS (bar) | 16 |
| Connections | Flanged PN16 |
| Seats | PTFE |
| Ball material | Stainless steel 316 |
| Surface temperature | TX |
| TS max (°C) | 230 |
| TS min (°C) | -50 |
| Pneumatic actuator type | Double acting |
| Ball valve design | 2-piece body |
| ATEX zone | 1.21.2.22 |
| Warranty period | 1 year |
| CE | Risk category I |
| Range | JC Valves |
| Fire safe | Yes |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged PN16 Stainless steel CF8M (1.4408) Full 2-piece body DN65 - 2''1/2 Double acting Flanged PN16 | 316IIT065015103 | S1001472 |
€1,117.63
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full 2-piece body DN65 - 2''1/2 Spring return Flanged PN16 | 316IIT065016105 | S1001473 |
€1,286.54
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full 2-piece body DN80 - 3'' Double acting Flanged PN16 | 316IIT080015104 | S1001474 |
€1,521.17
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full 2-piece body DN80 - 3'' Spring return Flanged PN16 | 316IIT080016106 | S1001475 |
€1,776.33
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full 2-piece body DN100 - 4'' Double acting Flanged PN16 | 316IIT100015104 | S1001476 |
€2,112.77
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full 2-piece body DN100 - 4'' Spring return Flanged PN16 | 316IIT100016106 | S1001477 |
€2,331.31
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full 2-piece body DN125 - 5'' Spring return Flanged PN16 | 316IIT125015106 | S1001478 |
€3,437.40
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full 2-piece body DN125 - 5'' Spring return Flanged PN16 | 316IIT125016107 | S1001479 |
€4,069.99
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full 2-piece body DN150 - 6'' Double acting Flanged PN16 | 316IIT150015106 | S1001480 |
€4,814.49
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full 2-piece body DN150 - 6'' Spring return Flanged PN16 | 316IIT150016108 | S1001481 |
€5,467.60
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full 2-piece body DN15 - 1/2'' Double acting Flanged PN40 | 340IIT015015100 | S1001482 |
€369.39
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full 2-piece body DN15 - 1/2'' Spring return Flanged PN40 | 340IIT015016101 | S1001483 |
€404.91
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full 2-piece body DN20 - 3/4'' Double acting Flanged PN40 | 340IIT020015100 | S1001484 |
€431.03
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full 2-piece body DN20 - 3/4'' Spring return Flanged PN40 | 340IIT020016102 | S1001485 |
€503.06
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full 2-piece body DN25 - 1'' Double acting Flanged PN40 | 340IIT025015101 | S1001486 |
€478.84
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full 2-piece body DN25 - 1'' Spring return Flanged PN40 | 340IIT025016102 | S1001487 |
€534.69
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full 2-piece body DN32 - 1''1/4 Double acting Flanged PN40 | 340IIT032015101 | S1001488 |
€657.86
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full 2-piece body DN32 - 1''1/4 Spring return Flanged PN40 | 340IIT032016102 | S1001489 |
€713.76
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full 2-piece body DN40 - 1''1/2 Spring return Flanged PN40 | 340IIT040015102 | S1001490 |
€744.60
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full 2-piece body DN40 - 1''1/2 Spring return Flanged PN40 | 340IIT040016103 | S1001491 |
€776.16
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full 2-piece body DN50 - 2'' Double acting Flanged PN40 | 340IIT050015102 | S1001492 |
€871.09
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full 2-piece body DN50 - 2'' Spring return Flanged PN40 | 340IIT050016104 | S1001493 |
€977.89
(excl. btw)
|
add to cart |
